Imants TopDrain

Description

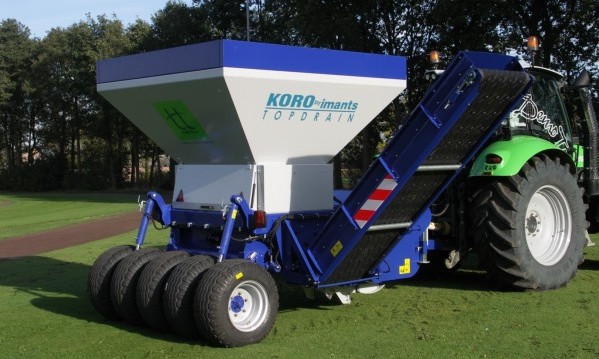

The Top Drain 1500 is a unique multifunctional machine that trenches, removes spoil, injects sand and re-compacts all in one operation. Designed for sportsfields and golf course fairways, the Top Drain benefits include; material and labour savings, faster processing times and less surface contamination than conventional methods. The sand grid created by the TopDrain complements existing drainage systems.

Imants Top Drain In Action

Check out more images of our Imants Top Drain in action!

Previous
Next



Complete one-pass surface drainage system

The Top Drain 1500 is a unique multifunctional machine that trenches, removes spoil, injects sand and re-compacts all in one operation. Designed for sportsfields and golf course fairways, the Top Drain benefits include; material and labour savings, faster processing times and less surface contamination than conventional methods. The sand grid created by the TopDrain complements existing drainage systems.

Specification
Working width1.50m
Transport 2.75m
Working depth/Weigth (approx) 15-225mm /3300kg
Number of cutting blades3
Spacing of discs 50cm
Thickness of discs 40mm
Power requirement 95hp Creep gear or hydrostatic drive required
Tractor requirements 540pto. 2xdouble, 1xsingle spool, 12v plug
Operation speed 0-1.8mph (0-3kph)
OptionsExtended side conveyor. Hopper vibrator






Product Details

For more product information download the Top Drain PDF below.
